IMPORTANCE OF DRAIN VALVE IN AIR COMPRESSOR

The drain valve is often the most overlooked component in a compressed air system, but it is a key part in maintaining the efficiency of the air compressor. The importance of the drain valve in air compressor operation is mainly reflected in the following aspects:

1. Preventing Moisture Accumulation and Protecting Equipment

Corrosion Protection: Water vapor contained in compressed air condenses into liquid water upon cooling. If this accumulates in air tanks, pipelines, or cylinders for extended periods, it can cause rust and corrosion on metal components (such as valves, cylinders, and bearings), shortening equipment life.

Lubricant Dilution: Moisture can enter the lubricating oil or lubrication system, reducing lubrication effectiveness and accelerating wear on moving parts (such as the rotor of a screw compressor).

2. Ensure Compressed Air Quality

Avoid Contamination: If condensate enters downstream air-consuming equipment (such as pneumatic tools, spray guns, and precision instruments), it can cause product contamination, equipment failure, or process defects (such as uneven spraying and stuck pneumatic components).

Drying Requirements: For industries with high air quality requirements (such as food, pharmaceutical, and electronics manufacturing), drain valves are the first line of defense for maintaining compressed air dryness.

3. Improve Energy Efficiency and Stability

Reducing Pressure Loss: Water accumulation increases pipe resistance, leading to pressure drops and frequent loads on the compressor, increasing energy consumption.

Preventing Ice Blockage: In low-temperature environments, accumulated water can freeze and block pipes or damage control components.

4. Automated Drainage Reduces Labor Costs

Modern drain valves are often automatic or motorized (such as timed drain, float-type, or electronic sensor-based drain). These valves eliminate the need for frequent manual operation, reducing maintenance and preventing untimely drainage caused by human error.

5. Safety Risk Control

Avoid water hammer: Accumulated water in high-pressure airflow can cause water hammer (a sudden pressure surge), damaging pipes or valves.

Prevent freeze cracks: In cold environments, unvented water can freeze and expand, potentially causing pipes or gas tanks to rupture.

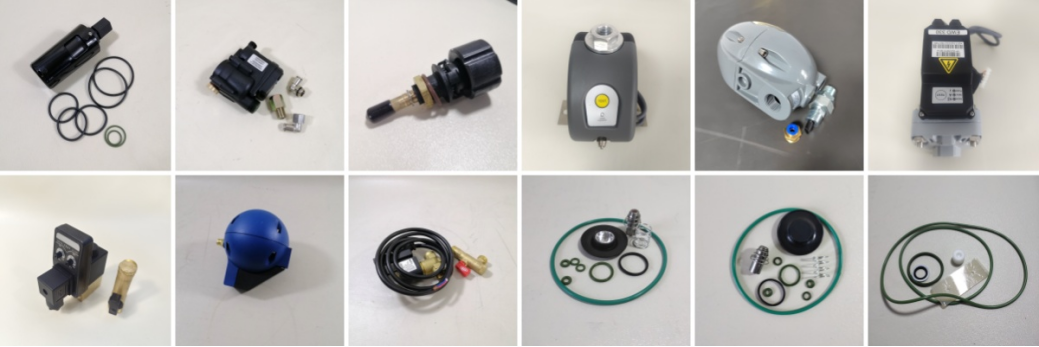

Qingdao Futai is your one-stop supplier of all air compressor parts to keep your air compressor at its best performance. If you are interested in our products and want to know more, please click the message icon in the lower right corner and select the contact information you want to use to contact us.
